Trumatic L 3030
Characteristics
TRUMPF Trumatic L3030 laser cutting machine
Year of construction: 2000
Work area: 3,000 x 1,500 x 200 mm
Laser power: 4000 watts

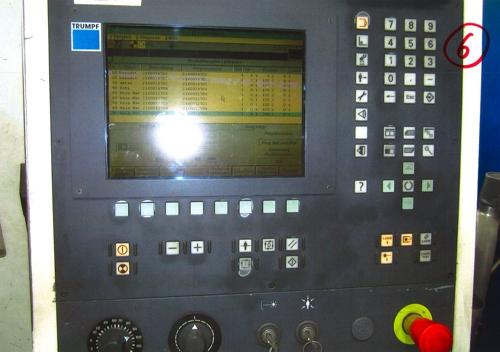

Control: Siemens Sinumerik 840 D
Max thickness Sheet / piece: 20 mm
Max thickness Sheet metal / VA: 12 mm Max. thickness Sheet metal / Al: 10 mm
TRUMPF LiftMaster L 3030
Load capacity 7,200 N, brand :: Trumpf type :: LiftMaster L 3030
Year of construction: 2000
Charging device: LMZ 3030
Max size upload/download Sheet: 3,000 mm x 1,500 mm
Cycle duration: 230 s
General system dimensions:
Length: 12,194 mm, width 10,797 mm, height: 2,000 mm (machine),
2,950 mm (Liftmaster),
- Weight: 4000 kg (including all components and lifting master)
